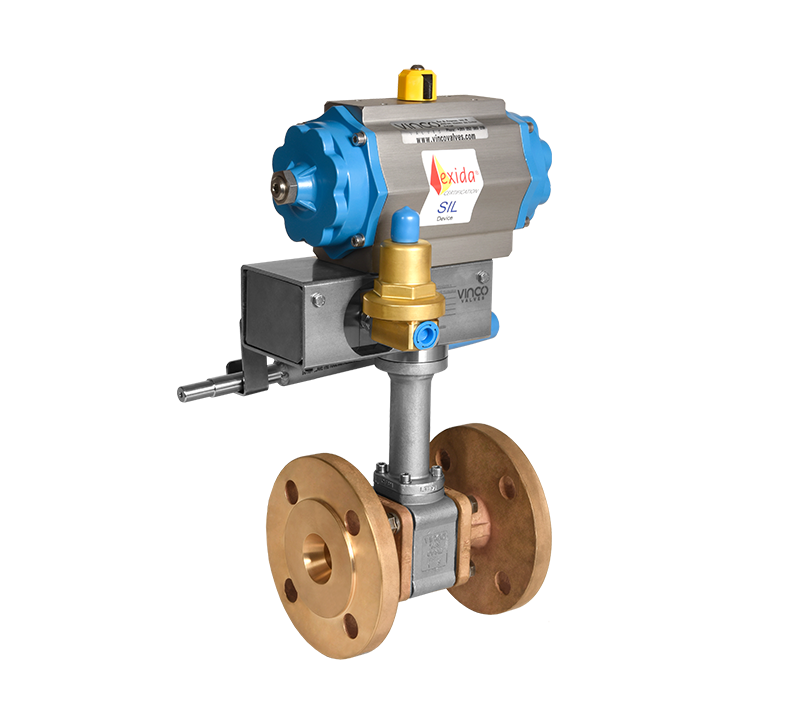

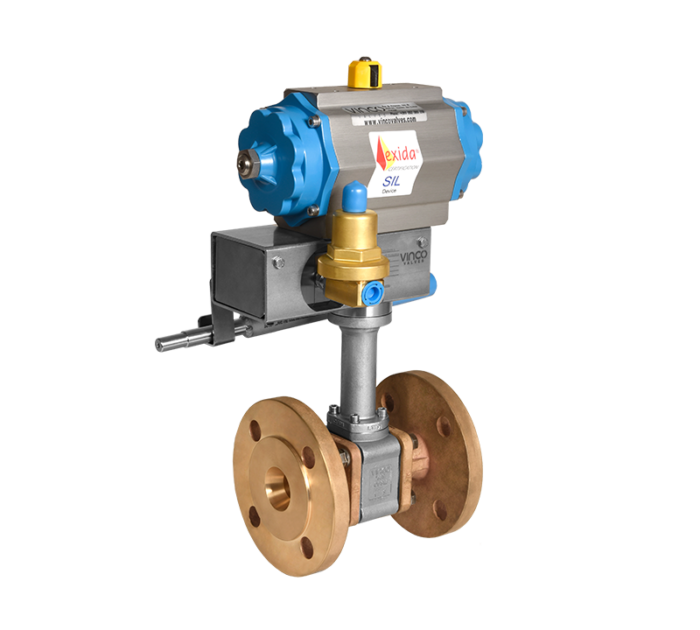

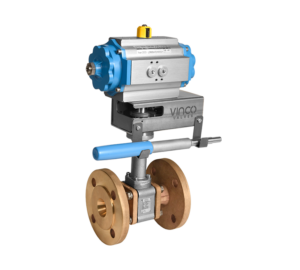

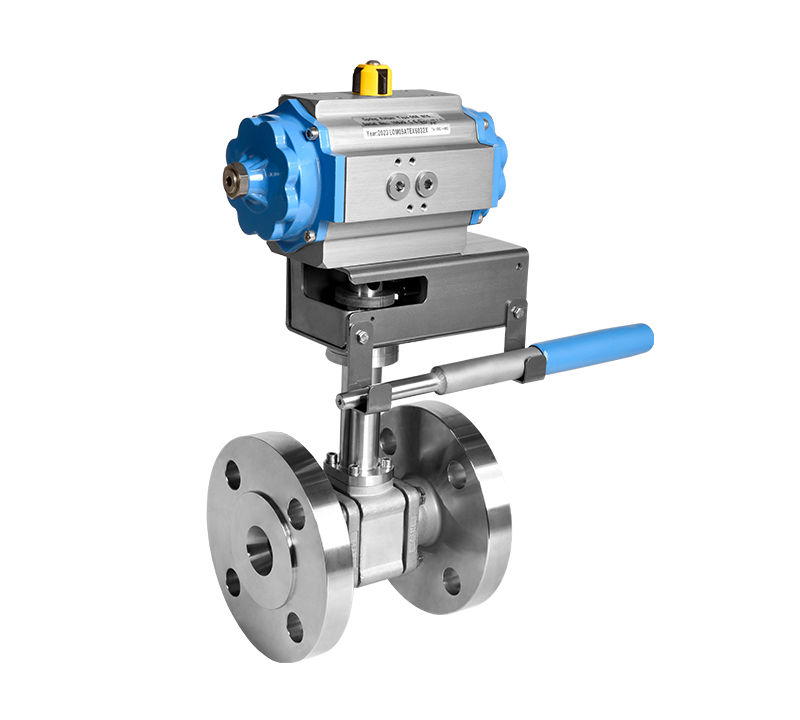

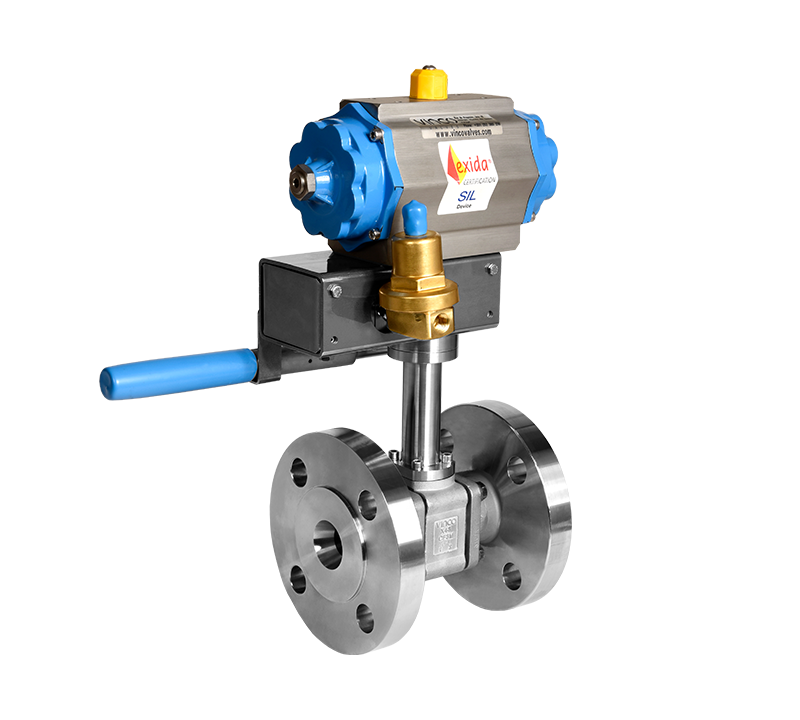

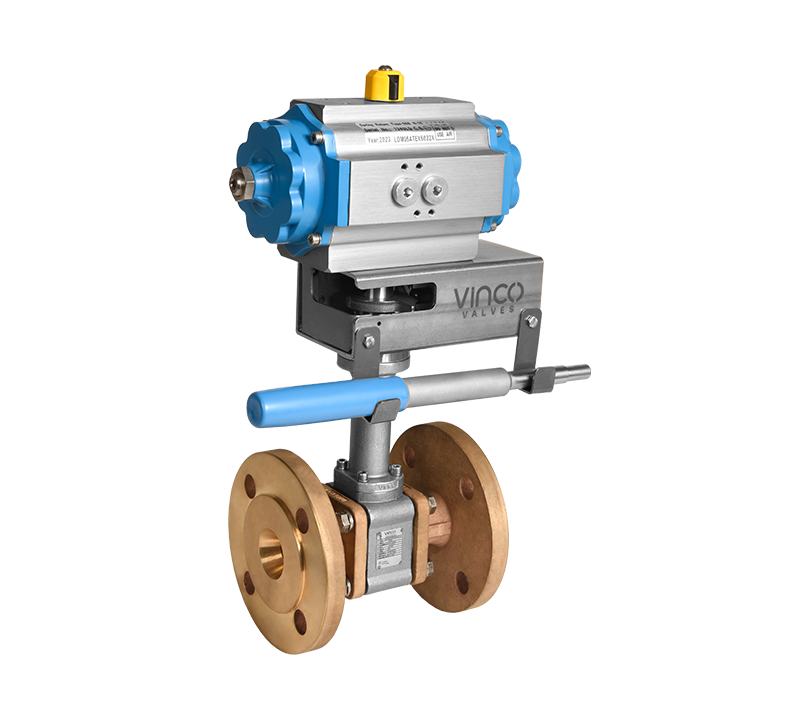

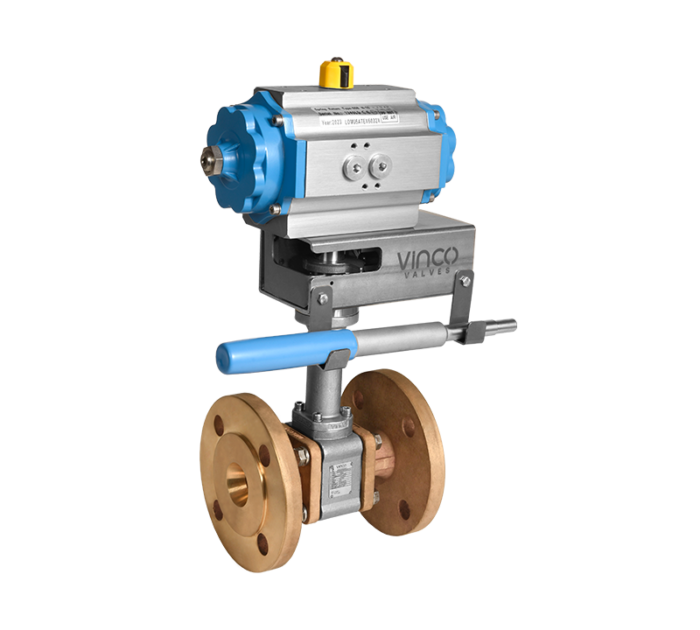

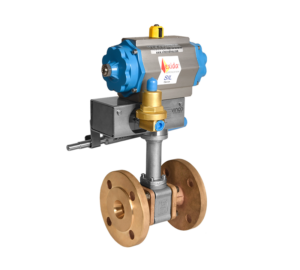

Standard Features:
Cryogenic floating ball | Soft seated | Reduced bore | Bidirectional
Overfill protection system | Automatic safety device | Reset system incorporated | Set point pressure relief
Antistatic design
Live loaded stem packing
NACE MR0175 / ISO 15156 compliance
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats | Pressure equalizing hole | Upstream pressure relief hole

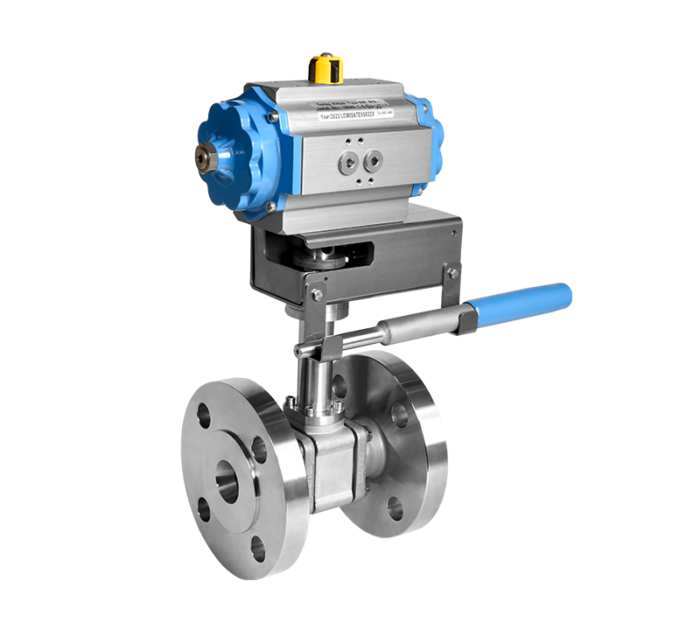

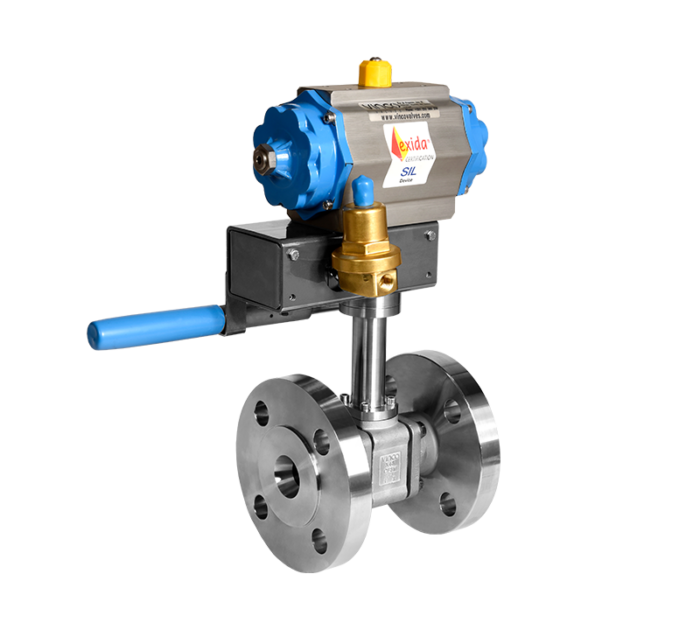

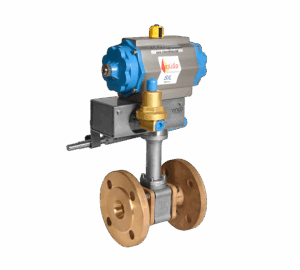

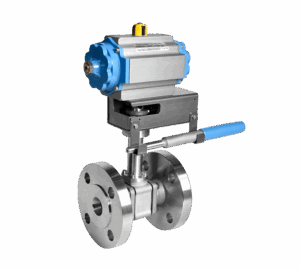

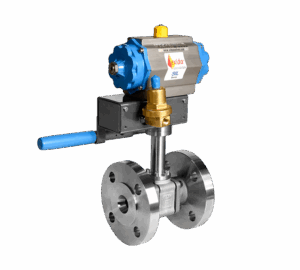

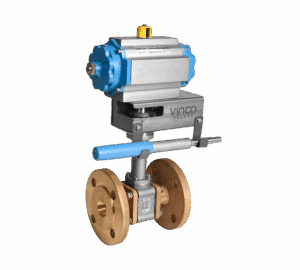

OPP System
The Over Pressure Protection (OPP) is an Emergency Shut Down (ESD) system that can be applied to any quarter turn equipment, as the ball valve series. It is designed to automatically, without any human intervention, close the valve when a specified pressure is reached, preventing the over fill / over pressure and subsequent burst of the containing parts of a vessel. The closing system is exclusively mechanical to avoid any pneumatic or electric energy enhancing the safety of the systems.
| Pressure ratings |
PN40, PN100 |
|---|---|
| Temperature range |
-196ºC to 200ºC (-321°F to 392°F) |
| Size range |
DN40 |
| Body style |
Three Piece Bolted |
| End connections |
Flanged |
| Body materials |
A351 CF3M | B62 C83600 |
| Seat materials |
TFM1600 |
| Range |
Cryogenic |
Features
Construction
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
End connection standards:
RF Flange – EN 1092-1 Raised Face
Face to face standards:
Manufacturer standard
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A (ambient temperature)
Materials
Body materials:
Standard: A351 CF3M | Optional: B62 C83600
Trim materials:
Ball – Standard: A351 CF8M | Optional: B505 C95500
Stem – Standard: HS SS
Seat materials:
Standard: TFM1600
Bolting materials:
Standard: A4 cl.70
Standard: A4 cl.70
Certifications
Product certification:
PED 2014/68/EU Cat. VI
