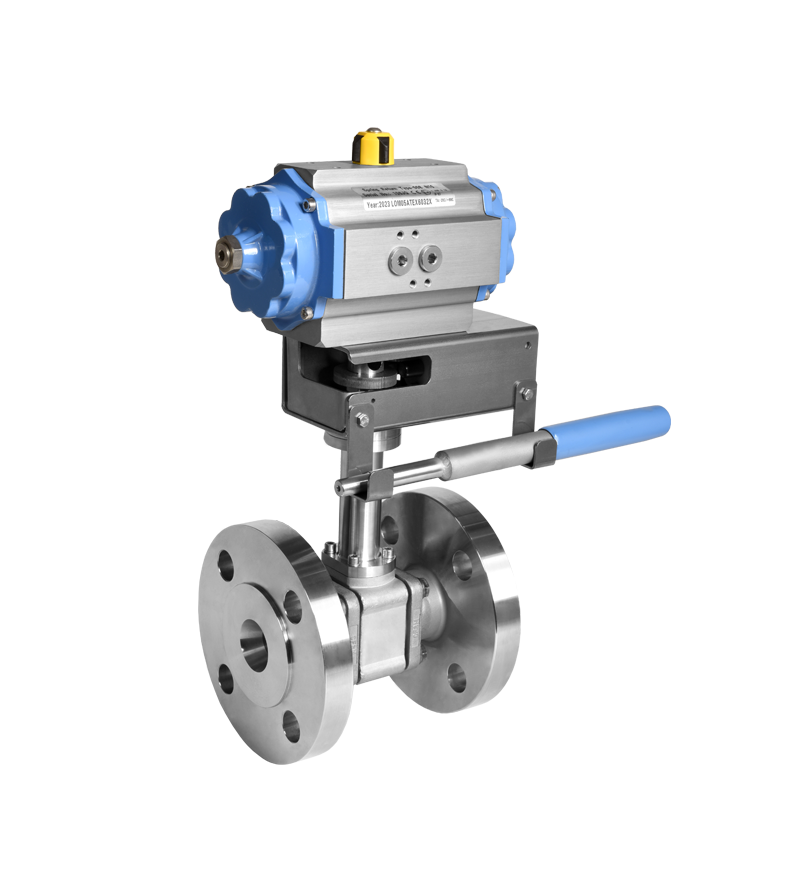

The CCF DIN Series is a cryogenic floating ball valve designed for use in extreme temperatures as low as -196ºC, making it ideal for LNG, LPG, and other applications. It features an advanced unidirectional design with an upstream relief hole to release overpressure safely. The valve is equipped with a rib and groove, fool-proof system to ensure proper installation and operation of the safety feature, and an expansion chamber to create a barrier between the liquefied gas and the packing, enhancing the sealing system’s performance. The CCF DIN Series is available with PN40 and PN16, short pattern F4/F5 and long pattern F1, making it the perfect solution for systems that require high reliability and safety.
| Pressure ratings |
PN16 ,PN40 |
|---|---|
| Temperature range |
-196ºC to 200ºC (-321°F to 392°F) |
| Size range |
DN15 – DN150 |
| Body style |
Split-body | Full Bore |
| End connections |
Flanged |
| Body materials |
1.4408 |
| Seat materials |
TFM1600 |
Standard Features:
Cryogenic floating ball | Soft seated | Full bore | Unidirectional
Fire safe design | Antistatic design
Live loaded stem packing
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats | Pressure equalizing hole | Upstream pressure relief hole
Optional Features:
Fire safe design
Low emission packing
Degreased for special applications
V-Port for flow control applications
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
End connection standards:
RF Flange – EN 1092-1 Raised Face
Face to face standards:
EN 558-1 Serie 1/14/15
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A (ambient temperature)
BS 6364 upon request (cryogenic temperature)
Body materials:
Standard: 1.4408
Trim materials:
Ball – Standard: A351 CF8M | Optional: A479 316/L, Alloy 718; others
Stem – Standard: HS SS | Optional: Alloy 718; others
Seat materials:
Standard: TFM1600 | Optional: PCTFE
Bolting materials:
Standard: A4 cl.70
Product certification:
Fire tested acc. to API 607 and ISO 10497
ATEX 2014/34/EU
PED 2014/68/EU
TPED 2010/35/EU (EN1626) (optional)
ISO 28921-2:2015
Accessories:
BS 6364 extension
Bracket for automation
Pneumatic actuator
Limit switch
Solenoid valve
