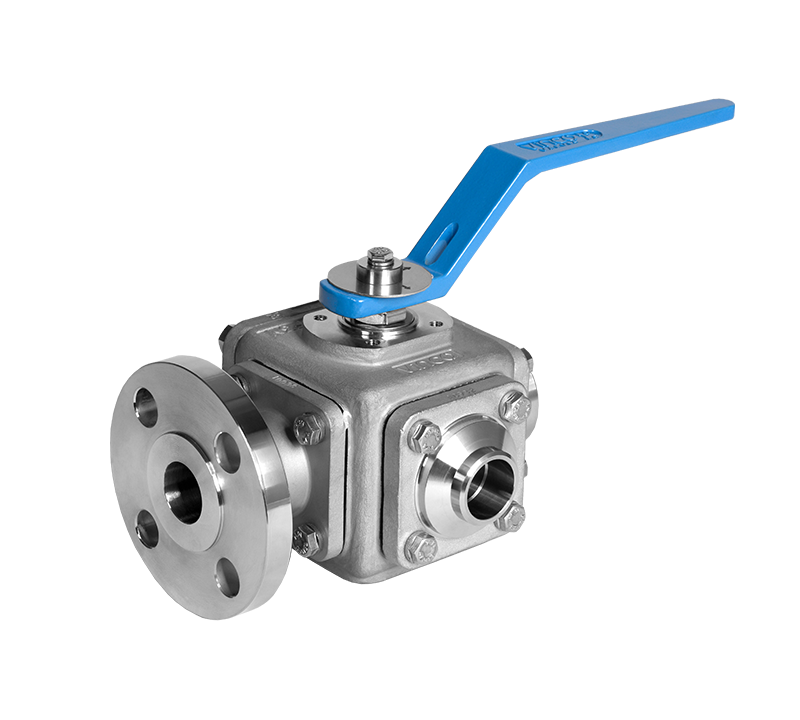

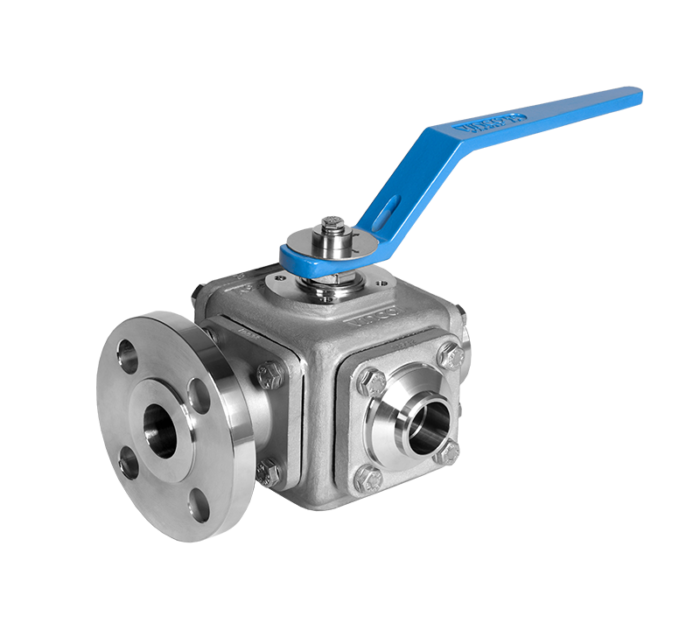

The QF ASME Series is a 3/4/5-way floating ball valve specifically designed for industrial applications. It allows for different ball port configurations with “L”, “T” or “X” options and with isolation at every port. Available with welded, threaded or flanged CL150 and CL300 end connections, this valve is manufactured in carbon steel as well as stainless steel. Additionally, the valve features as standard C-RPTFE soft seats and is available in both full and reduced bore configurations. It is very versatile, easy to operate, and incorporates low fugitive emission, fire safety design, and antistatic design features.
| Pressure ratings |
CL300 (max ΔP 20 bar) ,CL600 (max ΔP 20 bar) ,CL150 |
|---|---|
| Temperature range |
-50ºC to 240ºC (-58°F to 464°F) |
| Size range |
½″ – 2″ |
| Body style |
Multiport | Full/Reduced Bore |
| End connections |
Flanged | Welded | Threaded |
| Body materials |
A216 WCB | A351 CF8M |
| Seat materials |
C-RPTFE |
Standard Features:
Multiport floating ball | Soft seated | Full/Reduced bore | L/T/X Port
Antistatic design
Low emission packing | Live loaded stem packing
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats
Optional Features:
NACE MR0175 / ISO 15156 compliance
Food grade compatible version (CE1935/2004 version)
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
NACE MR0175 / ISO 15156 materials (optional)
End connection standards:
RF Flange – ASME B16.5 Raised Face
SW – ASME B16.11 Socket Weld
BW – ASME B16.25 and B36.10M Butt Weld
BW Nipple – ASME B16.25 and B36.10M Long Butt Weld
NPT – ASME B1.20.1 Threaded
Face to face standards:
Manufacturer standard
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A
Body materials:
Standard: A216 WCB; A351 CF8M | Optional: A352 LCC; A351 CF8
Trim materials:
Ball – Standard: A351 CF8M | Optional: A479 316/L; others
Stem – Standard: A479 316/L | Optional: A564 S17400; others
Seat materials:
Standard: C-RPTFE | Optional: TFM 1600; PEEK
Bolting materials:
Standard: A193 Gr. B7; A193 Gr. B8M cl.2 | Optional: A193 Gr. B7M; A320 Gr. L7M (NACE MR0175 / ISO 15156 compliance), others
Product certification:
Fugitive emissions tested acc. to ISO 15848
Fugitive emissions tested acc. to TA-Luft VDI 2440
PED 2014/68/EU
Accessories:
Stem extensions with double packing
Lockable lever
Bracket for automation
Pneumatic actuator
Limit switch
Solenoid valve
