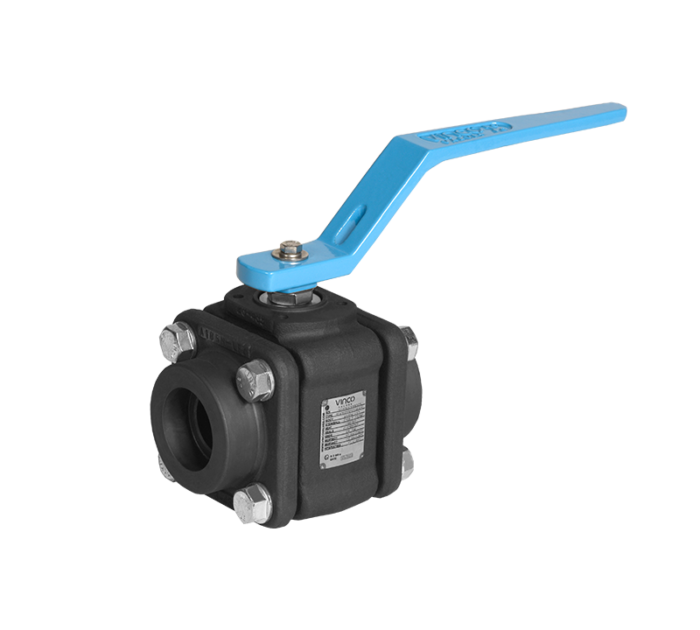

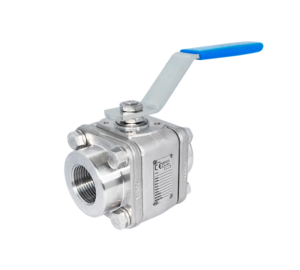

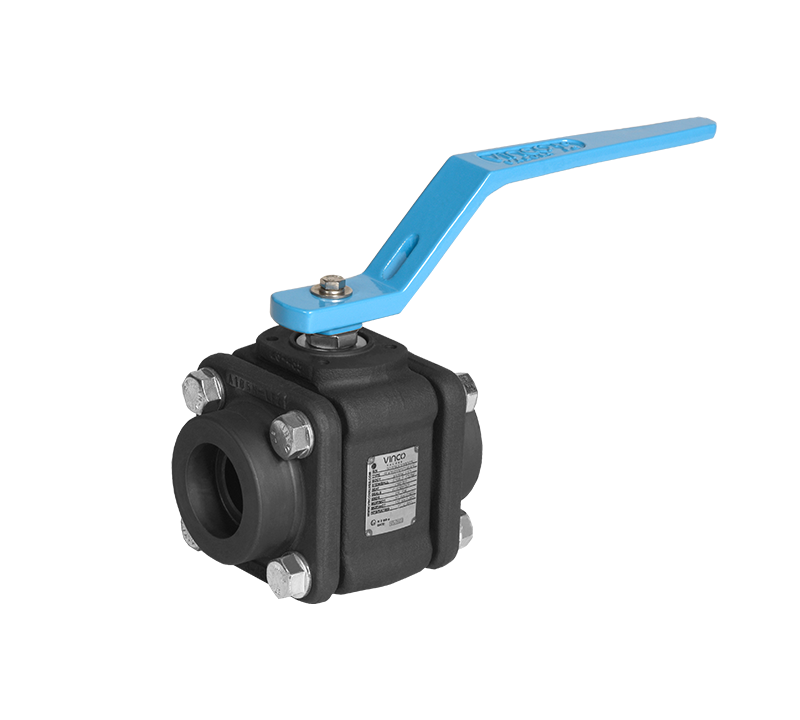

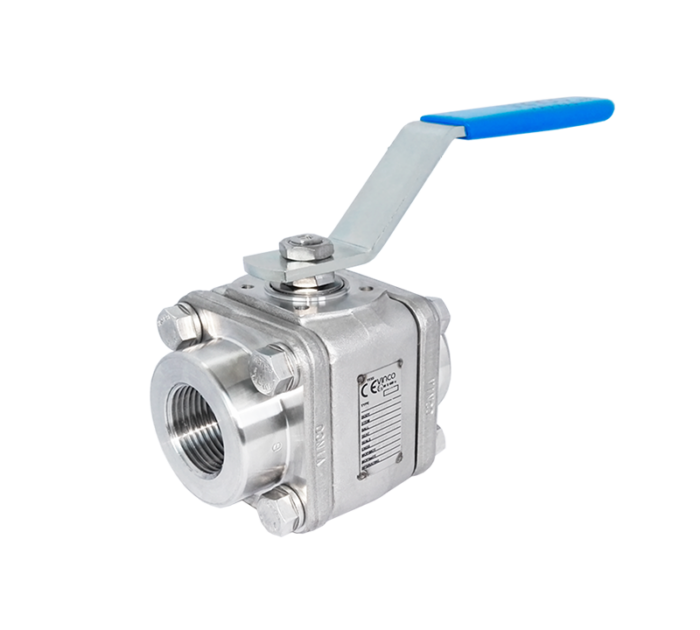

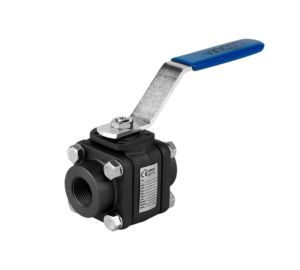

Designed for easy, in-line maintenance, the SF4 is a robust 3-piece bolted, forged valve and is a great choice for any on-off service application. Designed according to the ASME B16.34, it is a durable and reliable quarter-turn valve. It is available in low temperature carbon steel, dual certified A105N-LF2, offering options to suit different application requirements. The valve features bi-directional sealing with C-RPTFE soft seats and is available in both full and reduced bore configurations. It is very versatile, easy to operate, and incorporates low fugitive emission, fire safety, and antistatic design features.
| Pressure ratings |
CL800 (2000 psi) |
|---|---|
| Temperature range |
-46ºC to 240ºC (-50°F to 464°F) |
| Size range |
½″ – 1½″ |
| Body style |
Three Piece Bolted | Full/Reduced Bore |
| End connections |
Welded | Threaded |
| Body materials |
A105N / A350 LF2 cl.1 |
| Seat materials |
C-RPTFE |
Standard Features:
Floating ball | Soft seated | Full/Reduced bore | Bidirectional
Fire safe design | Antistatic design
Low emission packing | Live loaded stem packing
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats | Pressure equalizing hole
Optional Features:
Upstream pressure relief hole
V-Port for flow control applications
NACE MR0175 / ISO 15156 compliance
Food grade compatible version (CE1935/2004 version)
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
NACE MR0175 / ISO 15156 materials (optional)
End connection standards:
SW – ASME B16.11 Socket Weld
BW – ASME B16.25 and B36.10M Butt Weld
BW Nipple – ASME B16.25 and B36.10M Long Butt Weld
NPT – ASME B1.20.1 Threaded
BW – ISO 1127 or ISO 4200 Butt Weld
BW Nipple – ISO 1127 or ISO 4200 Long Butt Weld
BSPT – ISO 7-1 Threaded
BSPP – ISO 228-1 Threaded
Face to face standards:
Manufacturer standard
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A
Body materials:
Standard: A105N / A350 LF2 cl.1 | Optional: A182 F51; others
Trim materials:
Ball – Standard: A351 CF8M | Optional: A479 316/L; others
Stem – Standard: A479 316/L | Optional: A564 S17400; Alloy 718; others
Seat materials:
Standard: C-RPTFE | Optional: TFM 1600; PEEK
Bolting materials:
Standard: A193 Gr. B7 | Optional: A193 Gr. B8M cl.2; A193 Gr. B7M; A320 Gr. L7M (NACE MR0175 / ISO 15156 compliance); others
Product certification:
Fire tested acc. to API 607 and ISO 10497
Fugitive emissions tested acc. to ISO 15848
Fugitive emissions tested acc. to TA-Luft VDI 2440
EAC – TR CU 010/032
ATEX 2014/34/EU
PED 2014/68/EU
Accessories:
2 Opposite sides Flattened Ends
Stem extensions with double packing
Simple stem extension
Lockable lever
Bracket for automation
Pneumatic actuator
Limit switch
Solenoid valve
