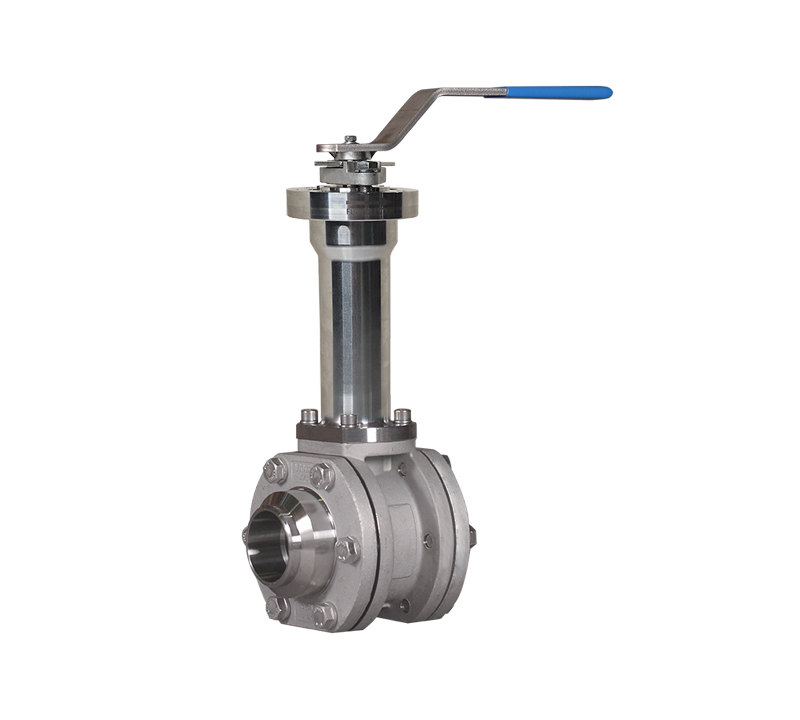

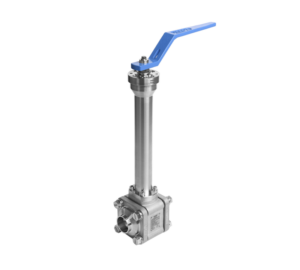

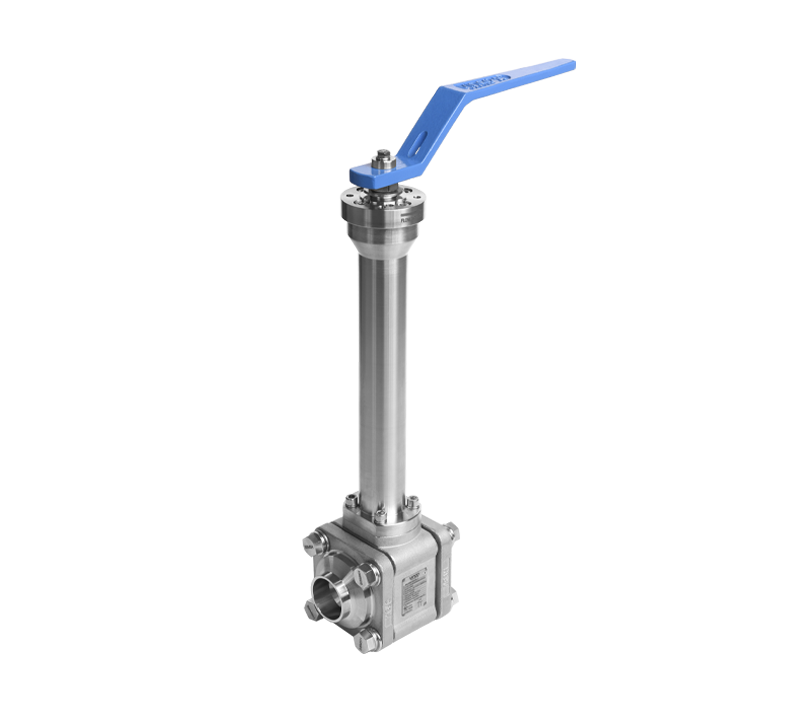

The CXF Series is a cryogenic floating ball valve designed for use in extreme temperatures as low as -196ºC, making it ideal for LNG, LPG, and other applications. It features an advanced unidirectional design with an upstream relief hole to release overpressure safely. The valve is equipped with a rib and groove, fool-proof system to ensure proper installation and operation of the safety feature, and an expansion chamber to create a barrier between the liquefied gas and the packing, enhancing the sealing system’s performance. The CXF Series is available with welding connections, making it the perfect solution for compact and permanent systems that require high reliability and safety.
| Pressure ratings |
CL150 ,CL300 ,CL600 |
|---|---|
| Temperature range |
-196ºC to 200ºC (-321°F to 392°F) |
| Size range |
½"- 6" |
| Body style |
Three Piece Bolted | Full/Reduced Bore |
| End connections |
Welded | Threaded |
| Body materials |
A351 CF3M |
| Seat materials |
TFM1600 |
Standard Features:
Cryogenic floating ball | Soft seated | Full/Reduced bore | Unidirectional
Fire safe design | Antistatic design
Live loaded stem packing
NACE MR0175 / ISO 15156 compliance
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats | Pressure equalizing hole | Upstream pressure relief hole
Optional Features:
Low emission packing
Degreased for special applications
V-Port for flow control applications
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
End connection standards:
SW – ASME B16.11 Socket Weld
BW – ASME B16.25 and B36.10M Butt Weld
BW Nipple – ASME B16.25 and B36.10M Long Butt Weld
BW – ISO 1127 or ISO 4200 Butt Weld
BW Nipple – ISO 1127 or ISO 4200 Long Butt Weld
Face to face standards:
Manufacturer standard
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A (ambient temperature)
BS 6364 upon request (cryogenic temperature)
Body materials:
Standard: A351 CF3M
Trim materials:
Ball – Standard: A351 CF8M | Optional: A479 316/L, Alloy 718; others
Stem – Standard: HS SS | Optional: Alloy 718; others
Seat materials:
Standard: TFM1600 | Optional: PCTFE
Bolting materials:
Standard: A193 Gr. B8M cl.2
Product certification:
Fire tested acc. to API 607 and ISO 10497
ATEX 2014/34/EU
PED 2014/68/EU
TPED 2010/35/EU (EN1626) (optional)
ISO 28921-2:2015
Accessories:
BS 6364 extension
Bracket for automation
Pneumatic actuator
Limit switch
Solenoid valve
