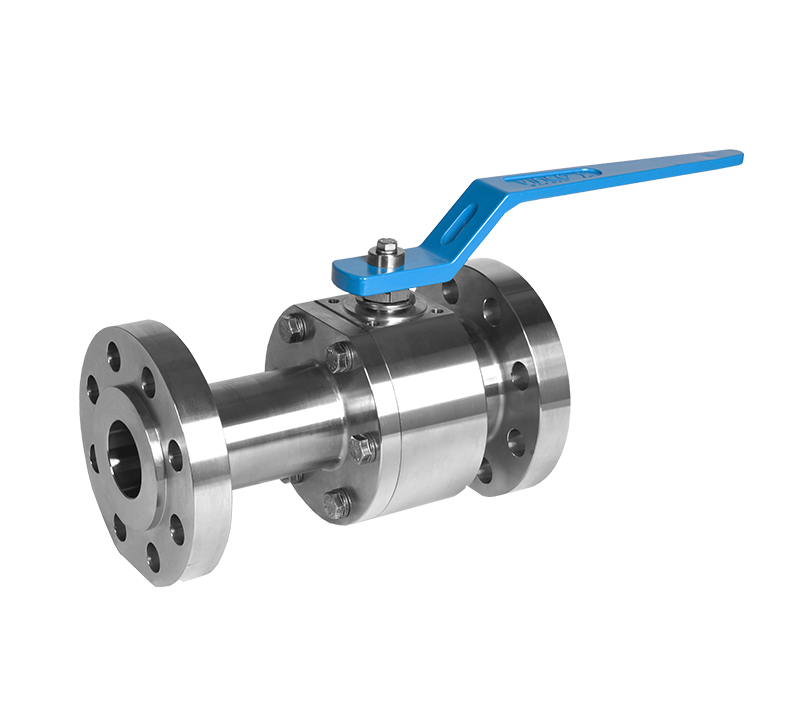

The BF Series is a ball valve that matches a large range of applications. It features a split body construction and uses C-RPTFE seats for maximum chemical compatibility combined with minimum coefficient of friction. It is a bi-directional, zero leakage valve and has an ISO 5211 top works, which simplifies the actuator and gear operator mounting. It has a self-relieving seat design, for cavity relief and is available in CL150, CL300 and CL600.
| Pressure ratings |
CL150 ,CL300 ,CL600 |
|---|---|
| Temperature range |
-50ºC to 240ºC (-58°F to 464°F) |
| Size range |
½″ – 8″ |
| Body style |
Split-body | Full Bore |
| End connections |
Flanged |
| Body materials |
A350 LF2 cl.1 | A479 316/L | A479 S31803 |
| Seat materials |
C-RPTFE |
Standard Features:
Floating ball | Soft seated | Full bore | Bidirectional
Fire safe design | Antistatic design
Low emission packing | Live loaded stem packing
NACE MR0175 / ISO 15156 compliance
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats | Pressure equalizing hole
Optional Features:
Upstream pressure relief hole
V-Port for flow control applications
Food grade compatible version (CE1935/2004 version)
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
End connection standards:
RF Flange – ASME B16.5 Raised Face
Face to face standards:
ASME B16.10
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A
Body materials:
Standard: A350 LF2 cl.1; A479 316/L; A479 S31803 (Duplex F51) | Optional: A479 S32760 (Super Duplex F55); Alloy 22; Alloy 625; others
Trim materials:
Ball – Standard: A351 CF8M | Optional: A479 316/L; others
Stem – Standard: A479 316/L | Optional: A564 S17400; Alloy 718; others
Seat materials:
Standard: C-RPTFE | Optional: TFM 1600; PEEK
Bolting materials:
Standard: A320 Gr. L7M; A193 Gr. B8M cl.2
Product certification:
Fire tested acc. to API 607 and ISO 10497
Fugitive emissions tested acc. to ISO 15848
Fugitive emissions tested acc. to TA-Luft VDI 2440
EAC – TR CU 010/032
ATEX 2014/34/EU
PED 2014/68/EU
Accessories:
Stem extensions with double packing
Simple stem extension
Lockable lever
Bracket for automation
Pneumatic actuator
Limit switch
Solenoid valve
